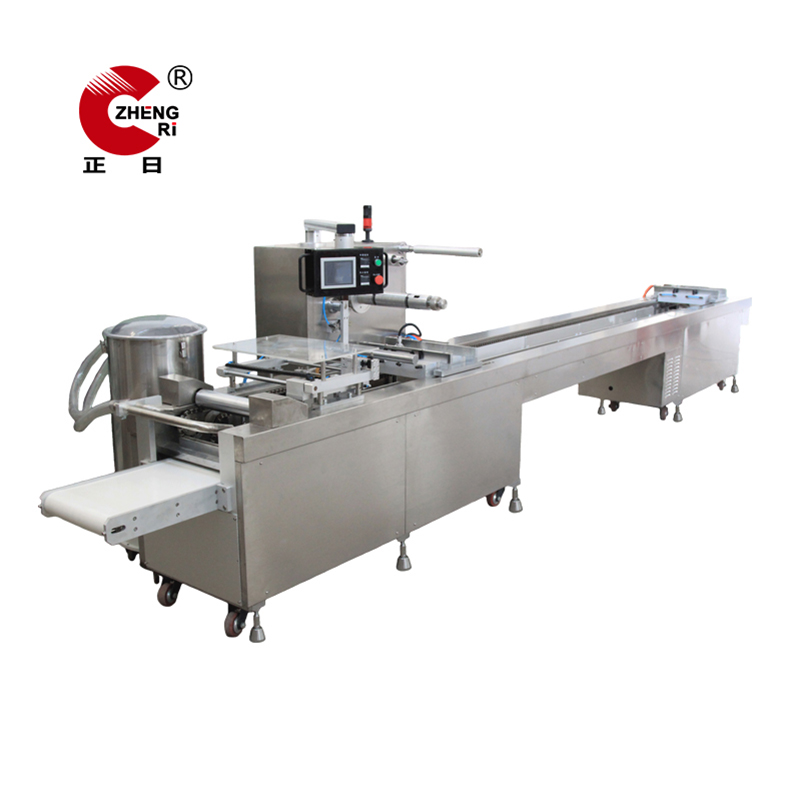

Automatic Blister packaging machine

  • Posted Date : 2019-05-31
  • Expiry Date: 2019-12-01
  • Category :
    • Packaging Materials & Equipment > Blister Packaging Material

Content :

Brief Introduce


Blister packaging machine also known as thermoplastic molding machine. This machine is the heating plasticization of PVC, PE and other thermoplastic materials sucked into a variety of shapes of advanced packaging boxes, boxes and other products. This machine is used to print the content on blister paper. It is small size, easy to install, use, and maintain, high production efficiency and automation degree, excellent printing effect.Blister packing machine can be used for syringes, infusion sets and other disposable medical supplies packaging. It can be used in any paper or plastic packaging industry.


Technical Parameter






Maximum Packing Width




300mm,400mm,460mm,480mm,540mm






Minimum Packing Width




19mm




Maximum Packing Length




60mm






Working cycle




4-6s




Voltage




3380v+N+E/50HZ






Air pressure




0.6-0.8Mps




Air consumption




700NL/MIN






Power




10kw




Cooling Water




80L/h(25)










Main components and features:


At present, the bubble cover packaging machine produced by our company has made the following improvements:


(1)The distance between guide posts of lifting mechanism is increased from 110 to 300, so that the stability of thermal bonding is improved obviously;


(2)The moving of the plastic absorbing mechanism and the heat sealing mechanism are all driven by screw rod, .syringemachine.com
