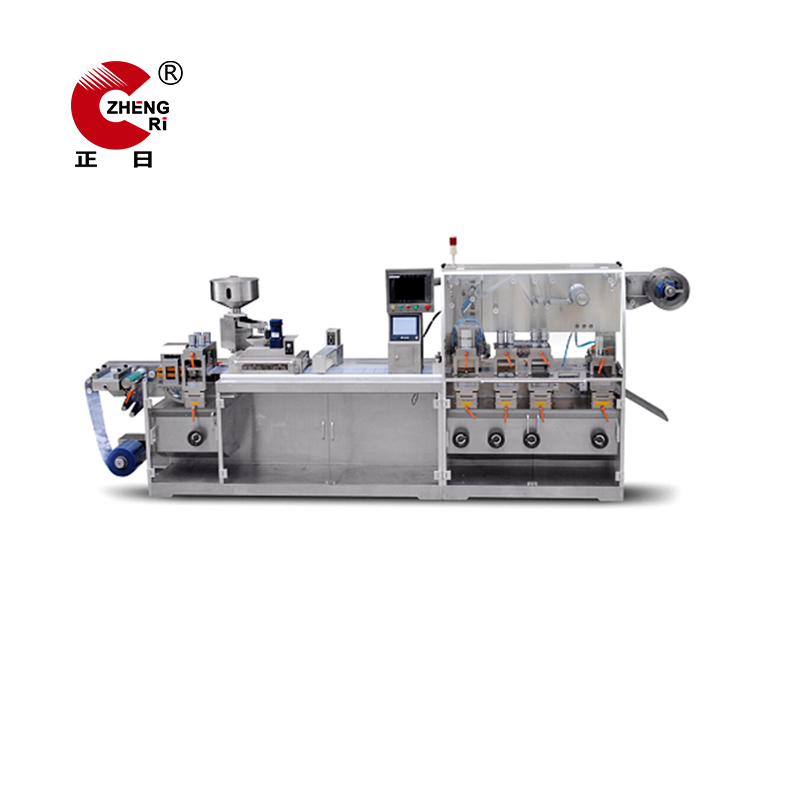

Pharmacy Capsule Blister Packing Machine

  • Posted Date : 2019-05-31
  • Expiry Date: 2019-12-01
  • Category :
    • Packaging Materials & Equipment > Blister Packaging Material

Content :

This type pharmacy blister packing machine is suitable for the package of capsule, tablet etc in medicine industrial. The packing material is PVC and aluminum. This capsule blister packing machine is with With one set of alu-pvc mould(without perforation),  one universal feeder, safety cover for sealing and punching station , PVC joint device and separate embossing device. Our blister packing machine is with high automation, high efficiency and easy to operate. The packing rate can reach 12000 strip/ h (standard 80*57mm ).












Punch Frequency : 6-60 times/ min


Capacity ( blister / h) : 9000 -12000  standard 80*57 mm


Max forming area and depth : 310*110*10mm, can according client`s requirement to 310*200*50 mm


Stroke Standard:  20-125mm, Max 160mm


Blister spec. Standard: 8057mm


Ref spec: 8057  9565  10343  12043 (can be designed accord to user`s requirement)


Granules on each blister strip capsule: 10 granules (# 0, # 1) , 12 granules (#1, #2, #3)


Tablet: 1-30 granules


Abnormal material: special design


Air Pressure: >0.2m3 (self equip)   Pressure: 0.4-0.6Mpa ( Equipped by buyer site)


Total Power: 380v/220v 50Hz 6kw


Heating power: Up and lower forming: 2kw / Heat seal: 2kw


Main Motor Power: 1.5kw


Packing material: PVC: 0.15-0.5320mm


PTP ALU foil: 0.02-0.35320mm


Dialysis paper: 50-100g320mm


Reel diameter: 70-76mm


Mould Cooling: Tap water or recycle water 60L/h


Overall size: 33007101600(LWH)mm


Weight of machine 1600kg
