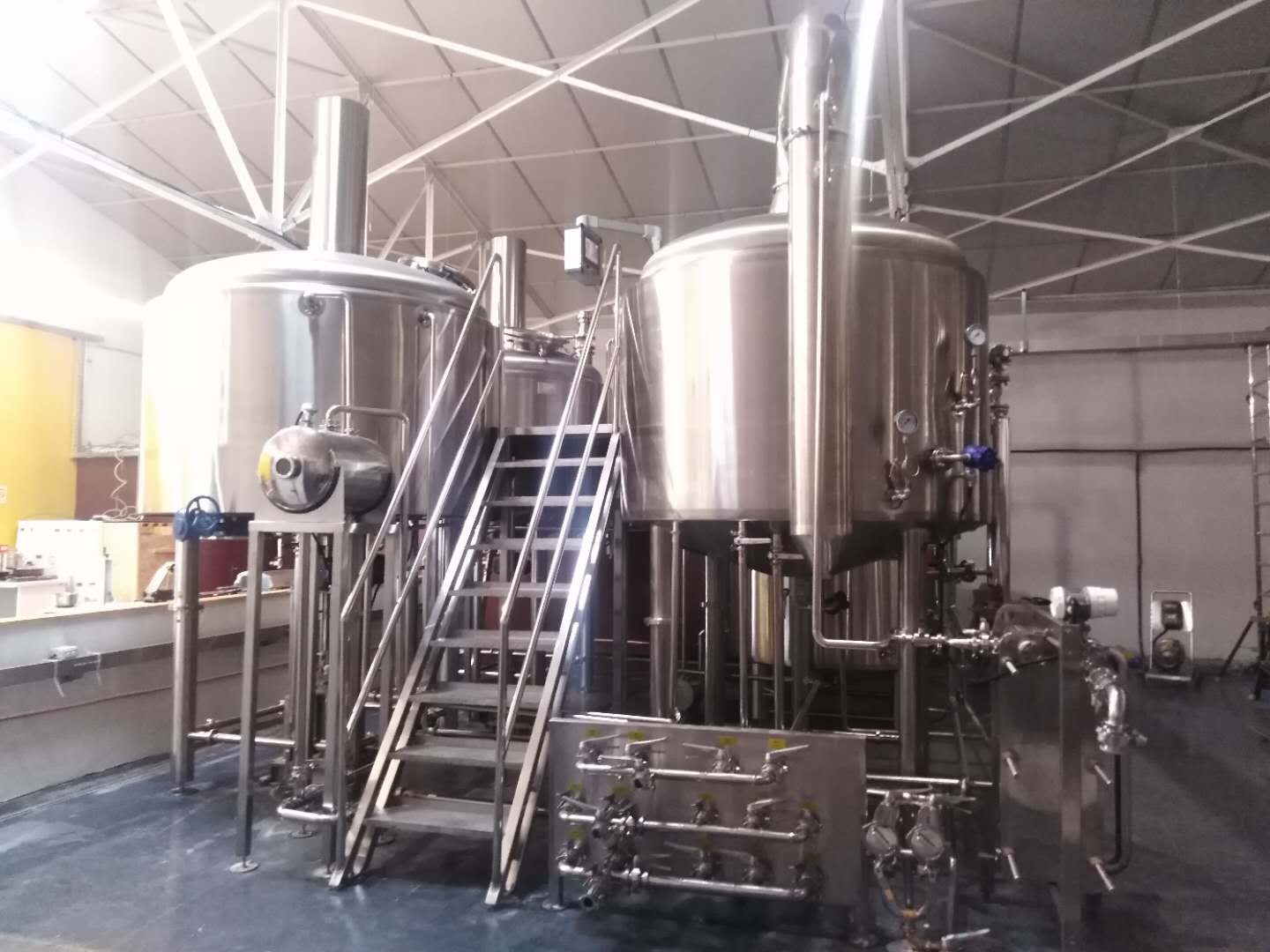

2000L brewery equipment,20Hl beer brewing system

  • Posted Date : 2020-01-17
  • Expiry Date: 2020-07-17
  • Category :
    • Agriculture & Food Products > Food Products

Content :

Turnkey craft brewery of 20hl from ZYBREW is most customized as the basic request on beer brewing from client and the existing building. Or we do turnkey solution design from Greenland. The brewhouse efficiency range from 2-8 brews based on different preferred configuration.

Higher wort wort extract
Lower energy cost and material consumption
Well adjusted temp and water blending unit for better grain and water mixing
Special designed steam jacket unit to increase steam using efficiency and avoid water hammer problem
Special tank and piping construction to avoid the wort aeration problem and decrease the material lost
Internal heater for separate kettle, working with cylinder and bottom jacket for better boiling effect.
Possible to make boiling process under pressure, especially for brewery at higher altitude.
Special designed steam condensing unit, with both steam condensing and water heating function
Cellar tanks with good design updating for better cooling effect and accurate temp control
Pre assembled cellar piping, with cat walks for operation on top or manifold or piping corridor
Cooling unit for current use and well prepared for future expanding
Automation system with curve indication and production record printing, with recipe storage function, clients can create new recipe as the exact production requirement.

Basic configuration:
Grain handling: Mill, conveyor (flexi auger or chain disc), hopper etc. With weight scaling
Brewhouse: Three or four vessels, including piping, HE etc.
Cellar: Fermenter, storage tank and BBTs, for fermentation of different kinds of beer, all assembled and isolated
Cooling: Chiller connected with glycol tank for cooling, with ice water tank and plat cooler for wort cooling
CIP: Fixed CIP station or Portable CIP unit
Filtration: Diatomite filtration, membrane filter, Plate frame filtration unit etc.
Compressed air unit and N2 generator, all piping line connected with system
